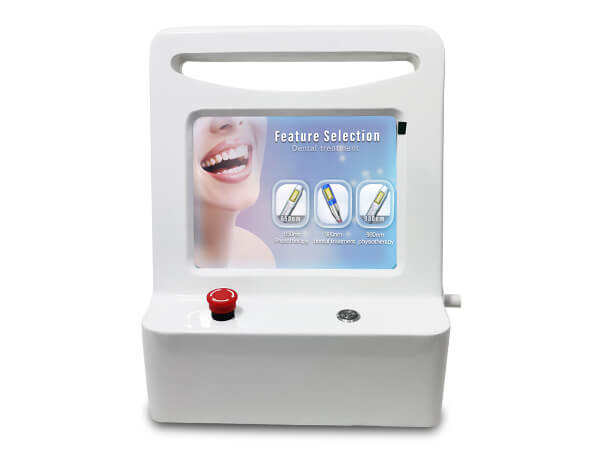

Professional 980nm & 650nm Dental Laser Device PL-FO
The 980nm & 650nm diode dental laser device PL-FO is designed for a wide variety of oral soft tissue. Dental lasers utilize solid-state diodes as a laser energy source. The energy is delivered to the operating area by a flexible fiber. The device is activated by means of a pedal. Products are placed onto the teeth and activated using our state-of-the-art laser whitening system. Stains within the teeth are oxidized and removed bringing back your original white tooth color. During this process, there is no damage to the structure of the tooth or enamel and it is completely safe.
Dental diode laser device PL-FO delivers clear benefits over conventional methods of treatment with mostly scar-free wound healing and improved germ reduction. For patients, the use of lasers means less post-operative pain and therefore less need for medication. Not only that, but your practice benefits too, because satisfied patients are the best way to ensure success.
Besides those clinical benefits due to the versatile application range diode laser is also smaller in size and easier to use in terms of handling. Last but not least the investment in a diode laser is significantly lower which leads to a faster ROI.
Benefits:
- One device – 2 wavelengths: 650nm and 980 nm. Very wide range of uses.
- Therapy light wand
- Clear whitening plug

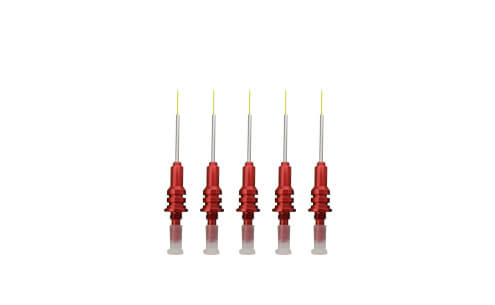

- 400 μm Fiber optic needle

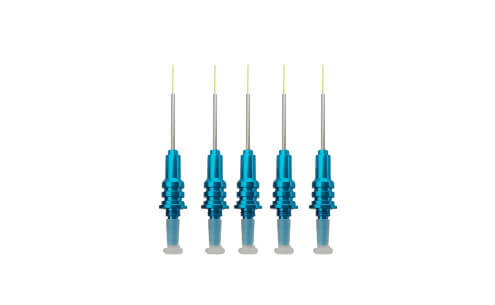

- 300 μm Fiber optic needle

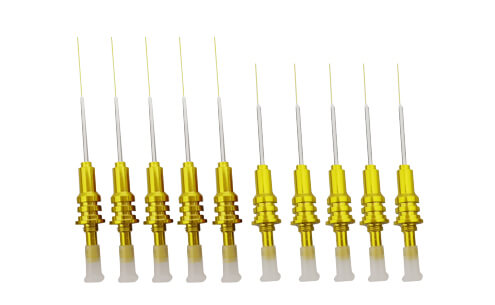

- 200 μm Fiber optic needle
- Sophisticated combination of function and form. Ergonomic and intuitive handling.
- Marketable tool for the modern practice.
- Less post-operative pain
- High performing through immediate treatment and versatile operation.
980nm & 650nm Dental Laser Device Working Principle

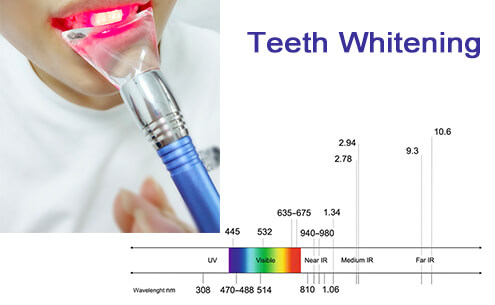

Teeth whitening
First, apply the whitening gel on the teeth, and use the whitening treatment head to irradiate the whitening gel to catalyze faster absorption and achieve the effect of teeth whitening effectively removing calculus and plaque from the tooth surface, irradiate whitening gel, catalyze faster absorption, and whiten teeth.
Anti-inflammatory/wound healing
The semiconductor 980nm diode laser has high water absorption, high thermal effect, and good vaporization performance. lt acts on the oral lesions to provide the energy required for rapid repair, and at the same time produces corresponding biological effects: hemostasis, sterilization, bacteriostatic, pain relief, and promotion of healing, etc.
Through sterilization and anti-inflammatory treatment head and surgical accessories, irradiation, and curettage of inflamed gum pockets and other periodontal parts have a good bactericidal effect, with a high success rate, less pain, and minimal intervention. Laser has a sealing effect on nerve endings, good hemostatic effect, less pain, clear and precise surgical field, and can effectively remove granulation tissue on the inner wall of the bag, reduce bleeding, and reduce the possibility of tissue necrosis. it has a good therapeutic effect on various periodontitis, gingival hyperplasia, fibroids, and other periodontal diseases.
Intraoral contact physiotherapy head: dedicated to intraoral biostimulation. After use, please unscrew the treatment head for autoclaving.
The 980nm dental diode laser therapy instrument uses a 980nm wavelength semiconductor fiber-coupled laser, which is used for teeth whitening, anti-inflammatory sterilization, root canal treatment, and cutting. In addition, it includes various therapy and surgical applications as follows:
- Therapy at 650nm: Wound healing, Dentin hypersensitivity, Desensitization of teeth
- Therapy at 980nm: Pain management, Mouth ulcer, Hemostasis
Surgical Applications at 980nm:
- Pain management :(using 300/400UM fiber tips, blue E300, red E400)
- Mouth ulcer :(using 300/400UM fiber tips, blue E300, red E400)
- Hemostasis :(using 300/400UM fiber tips, blue E300, red E400)
- Mouth blister :(using 300/400UM fiber tips, blue E300, red E400)
- Abscess treatment :(using 300/400UM fiber tips, blue E300, red E400)
- Lingual frenectomy :(using 300/400UM fiber tips, blue E300, red E400)
- Treatment of tooth marks :(using 300/400UM fiber tips, blue E300, red E400)
- Fibroma :(using 300/400UM fiber tips, blue E300, red E400)
- Gingivectomy :(using 300/400UM fiber tips, blue E300, red E400)
- Gingivoplasty :(using 300/400UM fiber tips, blue E300, red E400)
- Gingival Flap Surgery :(using 300/400UM fiber tips, blue E300, red E400)
- Gingival sulcus :(using 300/400UM fiber tips, blue E300, red E400)
- Periodontal disinfection :(using 300/400UM fiber tips, blue E300, red E400)
- Implant exposure :(using 300/400UM fiber tips, blue E300, red E400)
- Gingival release treatment :(using 300/400UM fiber tips, blue E300, red E400)
- Apicotomy :(using 300/400UM fiber tips, blue E300, red E400)
- Root canal disinfection (yellow E200-14MM and yellow E200-20MM)
Handlepieces

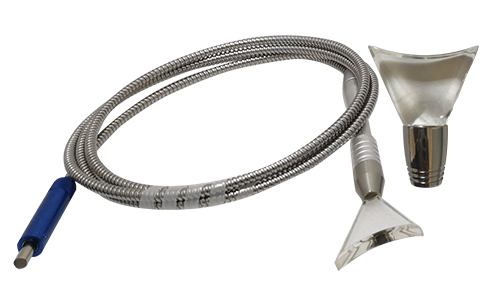

FIBER OPTIC HAND TOOL & DENTAL WHITENING PLUGS

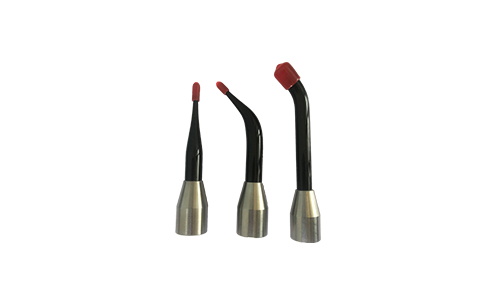

DENTAL THERAPY

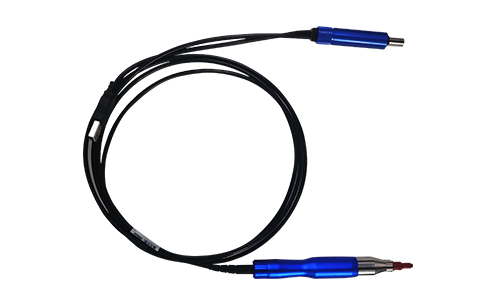

DENTAL FIBER HANDLE
Technical Parameters
| Output | Fiber-optic coupling |
| Laser Wavelength | 980nm & 650nm |
| Output Power | 1-7W (Options) |
| Pulse Width | 15ms-100ms |
| Pulse Frequency | 1-5 Hz |
| Mode | Pulse mode, Continuous mode |
| Operate Mode | Touch screen |
| Language | English Or OEM |
| Aiming Beam | 650nm |
| Net/Gross Weight | 5kg/10kg |
| Input AC | 100-240V, 50-60Hz |
| Length Of Fiber | 2m |
| Operation interface | 8.0 inch |
| Cooling | Air cooling |
| Machine Dimensions | 260mm*260mm*290mm |
| Flightcase Dimensions | 400mm*330mm*350mm |
Applications
The compact dental laser is the first dental diode laser to have a 650nm and a 980nm. This enables it to cover more than 22 indications – and therefore versatile possibilities for application in your practice routine.
- Wound healing
- Dentin hypersensitivity
- Desensitization of teeth
- Teeth whitening
- Mouth blister
- Abscess treatment
- Teeth Whitening
- Lingual frenectomy
- Treatment of tooth marks
- Fibroma
- Gingivectomy
- Gingivoplasty
- Gingival Flap Surgery
- Gingival sulcus
- Periodontal disinfection
- Implant exposure
- Root canal disinfection
- Gingival release treatment
- Tpotomy
- Pain management
- Mouth ulcer
- Hemostasis
Benefits for dentists and patients
Benefits for dentists:
- Precise incision, excision, ablation
- Practice growth and differentiation
- Quality of work
- Clean, clear operating field
- Reduced stress
- Greater through-put of patients
- Increment Revenue
- Greater efficiency
- Fiber provides better access
- A versatile tool for several applications
Benefits for Patients:
- Minimal or no bleeding
- No swelling, faster healing
- Reduced post-operative infection
- Minimal or no anesthesia
- Minimal pain, inconvenience
- Less time in the chair, less anxiety
- Whitening single-visit procedure
- High-quality treatment
- Less time predictable result
Dental Laser Device FAQs
Is laser dental surgery painful?
Dental lasers are virtually pain-free for a few reasons. It’s less invasive than traditional dental procedures. For example, laser dentistry can be used instead of invasive procedures that involve using scalpels and drills.
Can sensitive teeth be treated?
Yes, a small percentage of patients experience sensitivity regardless of the system used, to minimize pain, take a pain-killer one-half hour before the whitening procedure.
Do dental lasers work?
Lasers have considerably simplified and improved the treatment by vaporizing diseased tissue and killing the bacteria that cause the disease. Since there are no strains of bacteria that can resist the laser, you can be certain that your gums will start to heal.
How often can you laser your teeth?
Professional teeth whitening performed in the dentist’s office is recommended once every year to every 18 months, depending on how long the results last.
Why choose PRETTYLASERS’ dental diode laser device?
Improved bacterial reduction
The proven infrared 980-nm diode is used to reduce bacterial levels in periodontology and endodontics.
Less post-operative pain
The PRETTYLASERS’ dental diode laser device delights users and patients alike, since it makes uncomplicated healing possible, and reduces post-operative wound pain.
Mostly scar-free wound healing
It often makes sutures unnecessary, and thus usually mostly ensures scar-free healing of surgical wounds. Another advantage is that it may be possible to dispense with antibiotics after endodontic, periodontic, or surgical treatment.
22 different indications
Whether soft tissue surgery, endodontics, periodontology, or implantology – the PRETTYLASERS’ dental diode laser device can be used everywhere. More than 22 different indications can be treated. In surgery, you can replace conventional options with the PRETTYLASERS’ dental diode laser device, and in periodontology/endodontics, it can be used to supplement conventional treatment.
How much does a 980nm & 650nm dental laser machine cost?
If you are interested in learning more about the 980nm & 65nm diode laser dental machine PL-FO, fill out the form below and we will get back to you ASAP. Or simply Whatsapp: 0086 15001300057.
